Spot Light To Work In Dark
Utility Tray
Laser Light For Positioning
Basket With Gate
(Standing Platform)
Bag For Tools
Other Stuff
Remote
Electric Wheel

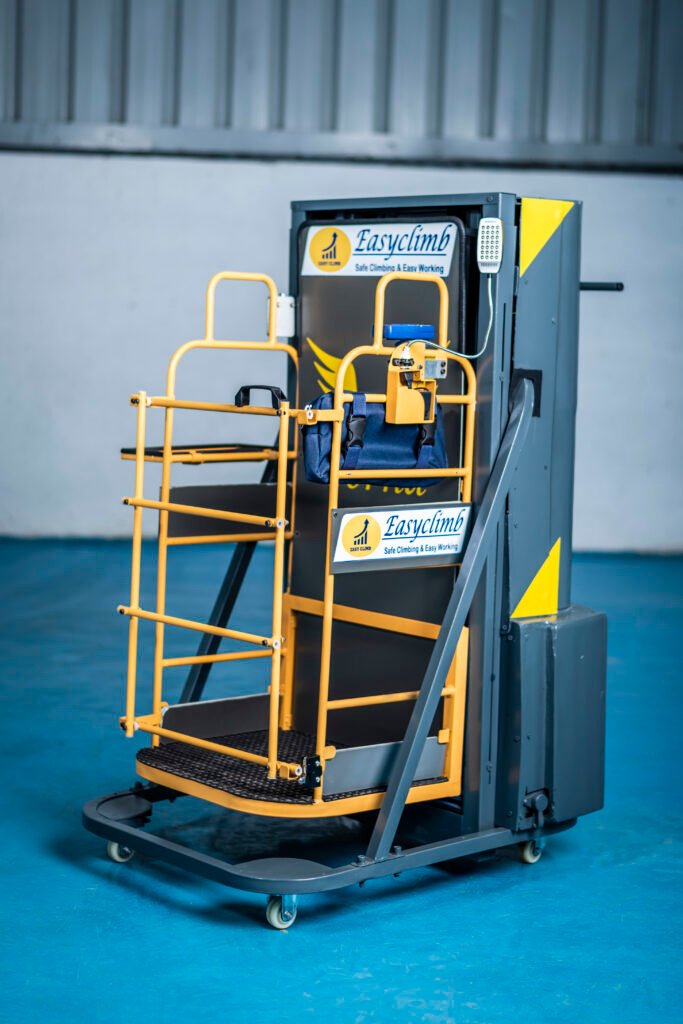

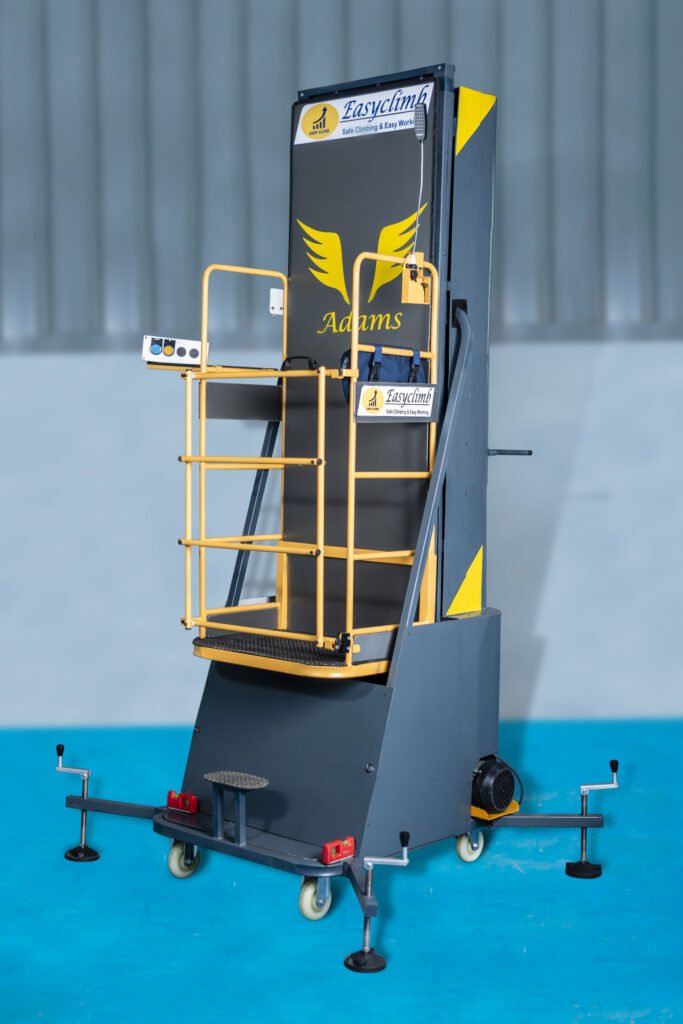

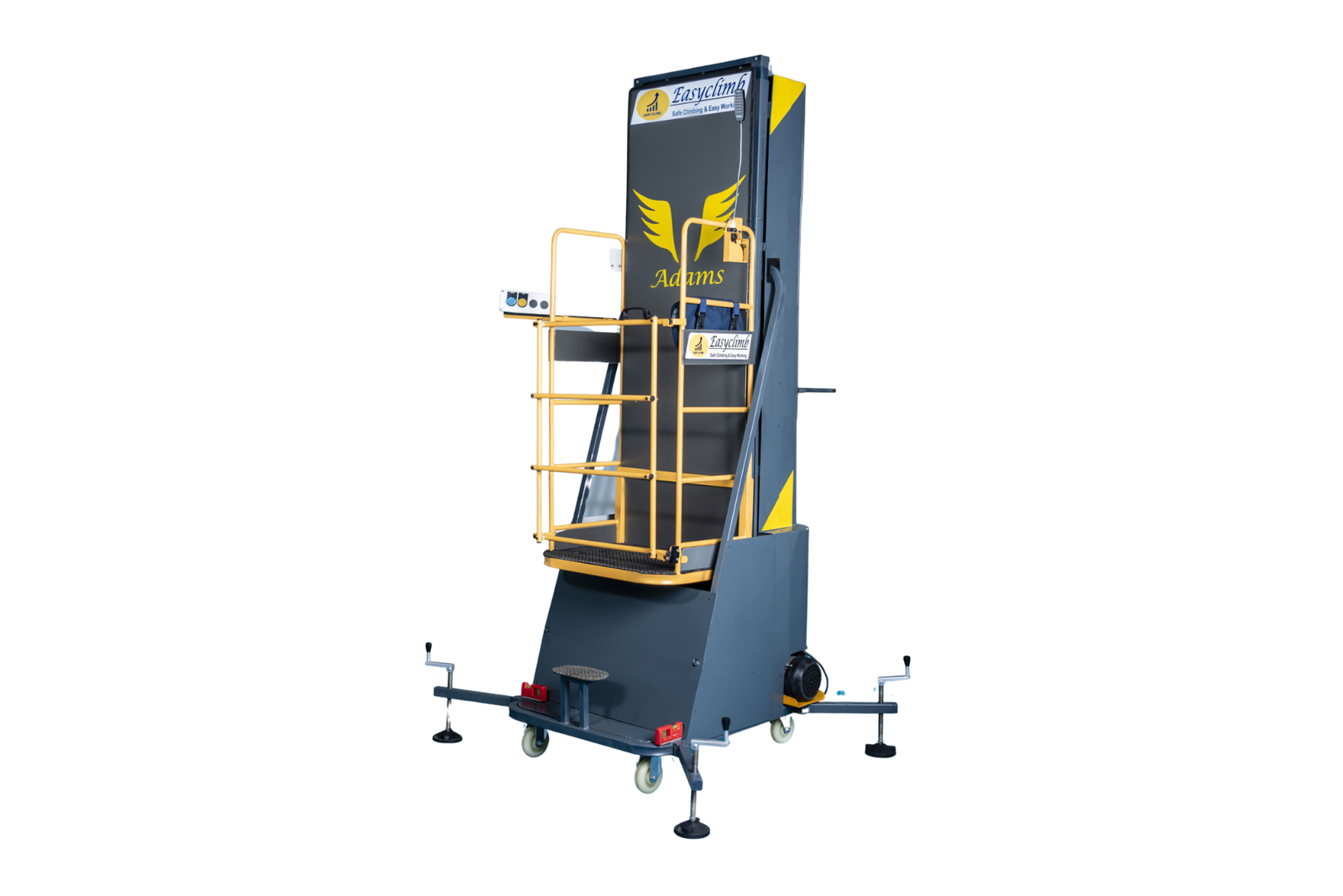

Easyclimb – Adams is a lightweight, portable vertical climbing solution designed for commercial applications such as overhead maintenance, painting, and signage work. With a working height of up to 16 feet, this model is easy to operate.
The Easyclimb – Adams model is built specifically for commercial spaces that require safe, efficient, and compact access to medium-height tasks. Whether you’re managing overhead work in retail shops, performing painting or signage cleaning, Torna gives you the height you need — without the bulk of scaffolding or unsafe ladders.
With a working height of up to 16 feet, and lightweight, easy-to-move design, this model is perfect for indoor commercial tasks. It’s engineered for stability and ease of use, making it a practical choice for day-to-day operations, it can be used in areas with or without direct power supply.
| SIZE | |
|---|---|
| Max. Working Height 'A' | 16 feet |
| Max. Platform Height 'B' | 10 feet |
| Overall Length 'C' | 2.7 feet |
| Overall Width 'D' | 2.6 feet |
| Overall Height 'E' | 7.1 feet |
| Outrigger Length | 1.01 m × 0.916 m |
| Platform Size | 550×400 mm |
| Ground Clearance | 120 mm |
| Wheels | 100×35 mm |
| Operating System | |
| Operating mechanism | Motorised pulley & rope mechanism |
| Performance | |
| Self weight | 90 KG |
| Weight carrying capacity | 150KG |
| Max. Occupants (Indoor/Outdoor) | 1 Person |
| Number of cycles on single charge | 100+ |
| Power | |
| Operating mode | Wireless remote / Pendant |
| Battery | 12V/60amp |
| Lifting Motor - AC | 450lbs |
| Charging time | 5-6 hours |
| Product Warranty | |
| Product warranty | 1 year |
| Tested cycles | min 5000 CYCLES |
| Product life | 10 year + |
| Motor warranty | 1 year |
| Battery warranty | 2000 charging cycle |
| Safety Features | |
|
Sensor integrated gate Shock resistance rubber mat Locking caster wheels Level pads Top & bottom position auto stop system LED light for working in dark areas | |
| Extra Features | |
|
Utility tray (Capacity 5 kg) Laser pointer for positioning Tool bag for small tools Spirit level for surface leveling Battery level indication display (SOC) Addition wired pendant Wireless remote Lithium ion battery | |
Lightweight & Portable: Effortlessly transportable for use across multiple work sites.
Versatile Applications: Perfect for overhead maintenance, painting, signage installation, and other commercial tasks.
Safe & Reliable: Equipped with advanced safety features to ensure secure operation at heights.
Working Height up to 16 Feet: Provides ample vertical reach for a variety of indoor and commercial projects.
Easy to Operate: Intuitive controls allow smooth ascent and descent, enhancing productivity.
Durable Construction: Built with high-quality materials for long-lasting performance in professional settings.
Compact Design: Space-saving and easy to deploy wherever needed.
- Check the battery level before operations. Ideally, it should be fully charged.
- Lift should not be operated at 2 bands of battery charge.
- Check the operation of the remote by switching it on and pressing the up & down buttons to check smooth operation.
- If the wireless remote is not working properly, replace both the A4 pencil cells.
- Keep the wired pendant attached to the socket while operating the lift
- Align the lift vertically by using the laser pointer attached to the basket. Also, the vertical climb should be free of any hazard.
- Ensure to lock the castor wheels.
- Check the horizontal spirit level provided at the base to ensure flatness of the base structure.
- Always use the extended outrigger and firmly secure the outrigger pads on the ground to ensure stability while operating the lift.
- The base ground for operation of the lift should be firm, solid and capable of carrying the specified load. Minimum 200 kgs (Lift own weight, individual weight & weight of equipment)
- Always use personal protective equipment given by your company for personal safety.
- Do not operate the lift above its limit on the specified weight.
- Do not operate the lift in bad weather or high-wind conditions outdoors.
- Incase the lift stalls midway in operation due to discharge of battery in the wireless remote, the attached wired pendant can be used to bring the lift down as well as up, safely.
- In the unlikely case that the lift is stalled midway in operation and the wired pendant is also not working, manual extraction is required by using any other suitable equipment.
- The lift is supported by robust hoisting mechanism that can carry 3-5 times of the specified load of the machine.
- Overcharging of the battery should be avoided.
- Wireless remote and the wired pendant should be stored in the attached tool bag provided on the basket of the lift.
